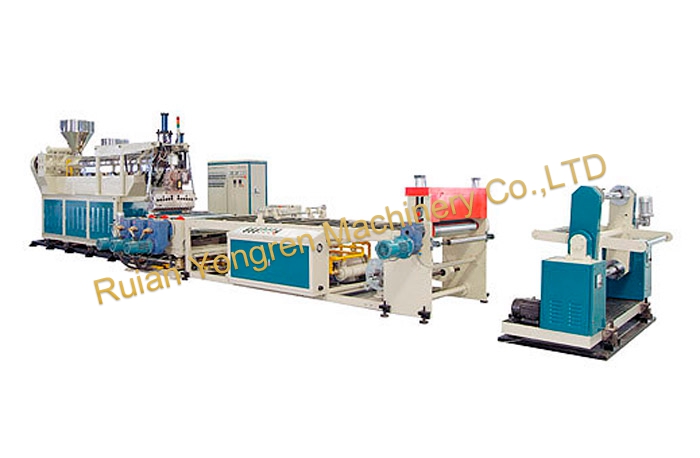

Sheet material machine assembly line

Purpose:

The inclined single-layer plastic sheet machine is suitable for producing single-layer co extruded polypropylene (PP), polyethylene (PE), polystyrene (HIPS), and other plastic sheets for containers such as beverage cups, ice cream cups, yogurt cups, lids, plates, and packaging boxes.

Performance characteristics:

1. The inclined single-layer plastic sheet machine unit is composed of an extruder, a rolling machine, a traction machine, a winding machine, and an electrical control cabinet.

2. The main components such as screws, material barrels, screen changers, and die heads are made of high-quality alloy steel (38CrMoAIA) and undergo nitriding treatment, which has the advantages of high hardness, corrosion resistance, and long service life.

3. The screw adopts a large aspect ratio, with uniform plasticization and good plasticizing ability

4. The screen changer adopts a hydraulic dual screen changer device, which does not require stopping the machine to change the screen. Easy to operate and improve production efficiency.

5. The machine's rolling, traction, and winding parts (including waste edge winding) adopt an overall design, with a beautiful appearance and convenient and fast installation and debugging.

6. The extruder frame is made of square steel, making the machine more stable during high-speed operation. The motor and gearbox are directly connected to improve production efficiency.

Main technical parameters:
